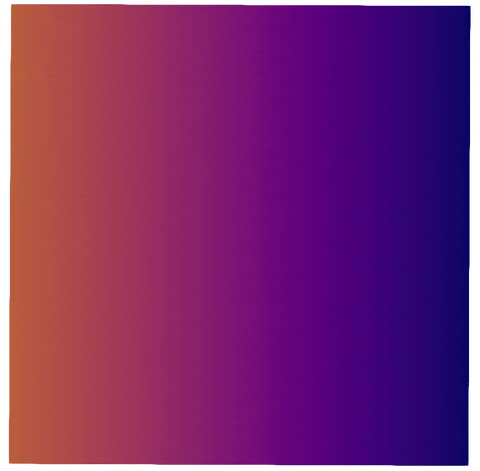

Electrophysiology Tutorial 1: Simple Spiral Wave

This tutorial shows how to perform a simulation of electrophysiological behavior of cardiac tissue.

Introduction

The most widespread model of cardiac electrophysiology is the monodomain model. It can be defined on a domain $\Omega$ as the system of partial differential equations

\[\begin{aligned} \chi C_{\textrm{m}} \partial_t \varphi &= \nabla \cdot \boldsymbol{\kappa} \nabla \varphi - \chi I'(\varphi, \boldsymbol{s}, t) & \textrm{in} \: \Omega \, , \\ \partial_t \boldsymbol{s} &= \mathbf{g}(\varphi, \boldsymbol{s}) & \textrm{in} \: \Omega \, , \\ 0 &= \boldsymbol{\kappa} \nabla \varphi \cdot \mathbf{n} & \mathrm{on} \: \partial \Omega \, , \end{aligned}\]

together with admissible initial conditions and a cellular ionic model to determine $I'$ and $\mathbf{g}$. ${\boldsymbol{\kappa}}$ denotes the conductivity tensor, $\varphi$ is the transmembrane potential field, $\chi$ is the volume to membrane surface ratio, $C_{\mathrm{m}}$ is the membrane capacitance, and $I'(\varphi, \boldsymbol{s}, t) := I_{\textrm{ion}}(\varphi, \boldsymbol{s}) + I_{\textrm{stim}}(t)$ denotes the sum of the ionic current due to the cell model and the applied stimulus current, respectively.

In this tutorial we will apply a reaction-diffusion split to this model and solve it with an operator splitting solver. For some theory on operator splitting we refer to the theory manual on operator splitting.

Commented Program

We start by loading Thunderbolt, OrdinaryDiffEqOperatorSplitting and LinearSolve to use a custom direct solver of our choice.

using Thunderbolt, LinearSolve, OrdinaryDiffEqOperatorSplitting

We start by constructing a square domain for our simulation.

mesh = generate_mesh(Quadrilateral, (2^6, 2^6), Vec{2}((0.0,0.0)), Vec{2}((2.5,2.5)));

Here the first parameter is the element type and the second parameter is a tuple holding the number of subdivisions per dimension. The last two parameters are the corners defining the rectangular domain.

We now define the parameters appearing in the model. For simplciity we assume $C_{\mathrm{m}} = \chi = 1.0$ and a homogeneous, anisotropic symmetric conductivity tensor.

Cₘ = ConstantCoefficient(1.0)
χ  = ConstantCoefficient(1.0)
κ  = ConstantCoefficient(SymmetricTensor{2,2,Float64}((4.5e-5, 0, 2.0e-5)));

microstructure = create_simple_microstructure_model(
  coordinate_system,
  LagrangeCollection{1}()^3;
  endo_helix_angle = deg2rad(60.0),
  epi_helix_angle = deg2rad(-60.0),
)
κ = SpectralTensorCoefficient(
    microstructure,
    ConstantCoefficient(SVector(κ₁, κ₂, κ₃))
)

The spiral wave will unfold due to the specific construction of the initial conditions, hence we do not need to apply a stimulus.

stimulation_protocol = NoStimulationProtocol();

Now we choose a cell model. For simplicity we choose a neuronal electrophysiology model, which is a nice playground.

cell_model = Thunderbolt.FHNModel();

Spiral wave initializer for the FitzHugh-Nagumo

function spiral_wave_initializer!(u₀, f::GenericSplitFunction)
    # TODO cleaner implementation. We need to extract this from the types or via dispatch.
    heatfun = f.functions[1]
    heat_dofrange = f.solution_indices[1]
    odefun = f.functions[2]
    ionic_model = odefun.ode

    φ₀ = @view u₀[heat_dofrange];
    # TODO extraction these via utility functions
    dh = heatfun.dh
    s₀flat = @view u₀[(ndofs(dh)+1):end];
    # Should not be reshape but some array of arrays fun, because in general (e.g. for heterogeneous tissues) we cannot reshape into a matrix
    s₀ = reshape(s₀flat, (ndofs(dh), Thunderbolt.num_states(ionic_model)-1));

    for cell in CellIterator(dh)
        _celldofs = celldofs(cell)
        φₘ_celldofs = _celldofs[dof_range(dh, :φₘ)]
        # TODO query coordinate directly from the cell model
        coordinates = getcoordinates(cell)
        for (i, (x₁, x₂)) in zip(φₘ_celldofs,coordinates)
            if x₁ <= 1.25 && x₂ <= 1.25
                φ₀[i] = 1.0
            end
            if x₂ >= 1.25
                s₀[i,1] = 0.1
            end
        end
    end
end;

Now we put the components together by instantiating the monodomain model.

ep_model = MonodomainModel(
    Cₘ,
    χ,
    κ,
    stimulation_protocol,
    cell_model,
    :φₘ, :s,
);

We now annotate the model to be reaction-diffusion split. Special solvers need special forms for the model. However, the same solver can work with different forms. In the case of operator splitting users might choose to split the equations differently. Hence we leave it as a user option which split they prefer, or if they even want work on the full problem.

split_ep_model = ReactionDiffusionSplit(ep_model);

We now need to transform the space-time problem into a time-dependent problem by discretizing it spatially. This can be accomplished by the function semidiscretize, which takes a model and the disretization technique. Here we use a finite element discretization in space with first order Lagrange polynomials to discretize the displacement field.

spatial_discretization_method = FiniteElementDiscretization(
    Dict(:φₘ => LagrangeCollection{1}()),
)
odeform = semidiscretize(split_ep_model, spatial_discretization_method, mesh);

We now allocate a solution vector and set the initial condition.

u₀ = zeros(Float32, solution_size(odeform))
spiral_wave_initializer!(u₀, odeform);

We proceed by defining the time integration algorithms for each subproblem. First, there is the heat problem, which we will solve with a low-storage backward Euler method

heat_timestepper = BackwardEulerSolver(
    inner_solver=KrylovJL_CG(atol=1e-6, rtol=1e-5),
);

And then there is the reaction subproblem, which decouples locally into "number of dofs in the discrete heat problem" separate ODE. We will solve these locally adaptive with forward Euler steps.

cell_timestepper = AdaptiveForwardEulerSubstepper(;
    reaction_threshold=0.1,
);

Now we can just instantiate the operator splitting algorithm of our choice. Since our time integrators are both first order in time we opt for the standard first order accurrate operator splitting technique by Lie-Trotter (or Godunov).

timestepper = LieTrotterGodunov((heat_timestepper, cell_timestepper));

The remaining code is very similar to how we use SciML solvers. We first define our time domain, initial time step length and some dt for visualization.

dt₀   = 1.0
dtvis = 25.0
tspan = (0.0, 1000.0);

This speeds up the CI # hide

Then we setup the problem. We have a split function, so the correct problem is an OperatorSplittingProblem.

problem = OperatorSplittingProblem(odeform, u₀, tspan);

u₀gpu = CuVector(u₀)
heat_timestepper = BackwardEulerSolver(
  solution_vector_type=CuVector{Float32},
  system_matrix_type=CUDA.CUSPARSE.CuSparseMatrixCSR{Float32, Int32},
  inner_solver=KrylovJL_CG(atol=1.0f-6, rtol=1.0f-5),
)
cell_timestepper = AdaptiveForwardEulerSubstepper(
    solution_vector_type=CuVector{Float32},
    reaction_threshold=0.1f0,
)
...
problem = OperatorSplittingProblem(odeform, u₀gpu, tspan)

Now we initialize our time integrator as usual.

integrator = init(problem, timestepper, dt=dt₀);

And finally we solve the problem in time.

io = ParaViewWriter("EP01_spiral_wave")
for (u, t) in TimeChoiceIterator(integrator, tspan[1]:dtvis:tspan[2])
    (; dh) = odeform.functions[1]
    φ = u[odeform.solution_indices[1]]
    store_timestep!(io, t, dh.grid) do file
        Thunderbolt.store_timestep_field!(file, t, dh, φ, :φₘ)
    end
end;

JULIA_DEBUG=Thunderbolt julia --project --threads=auto my_simulation_runner.jl

References

Plain program

Here follows a version of the program without any comments. The file is also available here: ep01_spiral_wave.jl.

using Thunderbolt, LinearSolve, OrdinaryDiffEqOperatorSplitting

mesh = generate_mesh(Quadrilateral, (2^6, 2^6), Vec{2}((0.0,0.0)), Vec{2}((2.5,2.5)));

Cₘ = ConstantCoefficient(1.0)
χ  = ConstantCoefficient(1.0)
κ  = ConstantCoefficient(SymmetricTensor{2,2,Float64}((4.5e-5, 0, 2.0e-5)));

stimulation_protocol = NoStimulationProtocol();

cell_model = Thunderbolt.FHNModel();

function spiral_wave_initializer!(u₀, f::GenericSplitFunction)
    # TODO cleaner implementation. We need to extract this from the types or via dispatch.
    heatfun = f.functions[1]
    heat_dofrange = f.solution_indices[1]
    odefun = f.functions[2]
    ionic_model = odefun.ode

    φ₀ = @view u₀[heat_dofrange];
    # TODO extraction these via utility functions
    dh = heatfun.dh
    s₀flat = @view u₀[(ndofs(dh)+1):end];
    # Should not be reshape but some array of arrays fun, because in general (e.g. for heterogeneous tissues) we cannot reshape into a matrix
    s₀ = reshape(s₀flat, (ndofs(dh), Thunderbolt.num_states(ionic_model)-1));

    for cell in CellIterator(dh)
        _celldofs = celldofs(cell)
        φₘ_celldofs = _celldofs[dof_range(dh, :φₘ)]
        # TODO query coordinate directly from the cell model
        coordinates = getcoordinates(cell)
        for (i, (x₁, x₂)) in zip(φₘ_celldofs,coordinates)
            if x₁ <= 1.25 && x₂ <= 1.25
                φ₀[i] = 1.0
            end
            if x₂ >= 1.25
                s₀[i,1] = 0.1
            end
        end
    end
end;

ep_model = MonodomainModel(
    Cₘ,
    χ,
    κ,
    stimulation_protocol,
    cell_model,
    :φₘ, :s,
);

split_ep_model = ReactionDiffusionSplit(ep_model);

spatial_discretization_method = FiniteElementDiscretization(
    Dict(:φₘ => LagrangeCollection{1}()),
)
odeform = semidiscretize(split_ep_model, spatial_discretization_method, mesh);

u₀ = zeros(Float32, solution_size(odeform))
spiral_wave_initializer!(u₀, odeform);

heat_timestepper = BackwardEulerSolver(
    inner_solver=KrylovJL_CG(atol=1e-6, rtol=1e-5),
);

cell_timestepper = AdaptiveForwardEulerSubstepper(;
    reaction_threshold=0.1,
);

timestepper = LieTrotterGodunov((heat_timestepper, cell_timestepper));

dt₀   = 1.0
dtvis = 25.0
tspan = (0.0, 1000.0);

tspan = (0.0, dtvis);   # hide

problem = OperatorSplittingProblem(odeform, u₀, tspan);

integrator = init(problem, timestepper, dt=dt₀);

io = ParaViewWriter("EP01_spiral_wave")
for (u, t) in TimeChoiceIterator(integrator, tspan[1]:dtvis:tspan[2])
    (; dh) = odeform.functions[1]
    φ = u[odeform.solution_indices[1]]
    store_timestep!(io, t, dh.grid) do file
        Thunderbolt.store_timestep_field!(file, t, dh, φ, :φₘ)
    end
end;
